Suzuki Swift Turbo

The Suzuki Swift Turbo project is considered a success with the kit currently pushing out 150 PS at the wheels with 19 kg-m of torque at 0.6 bar of boost.

A reverse calculation should arrive us at about 200 PS on the crank, not too bad at all.

Running the stage 1 turbo kit from GT Auto, the car is already building boost above 2,000 RPM thanks to the custom spec turbo that was carefully chosen and the wizardry tuning of Thomas from GT Auto.

Peak torque was achieved at 4,200 RPM which is just nice for spirited driving especially when it comes to traffic light confrontations.

The details and specifications of the car and the turbo kit can be found at the end of the page.

150.90 PS@wheels
19.26 kg-m@wheels


Clean rear shot


Tuning from GT Auto


VTTR 4 pot caliper brake kit


Apexi Auto Timer


Engine bay shot


Turbosmart Ultra-Gate38


GT Auto custom turbo


Additional side feed injector


Oil catch tank

Stage 1 Turbo Kit

Engine
Stock M15A engine
GT Auto custom turbo
GT Auto turbo manifold
GT Auto intercooler
GT Auto additional fuel injector
Turbosmart Ultra-Gate 38mm external wastegate
Turbosmart boost tee
Greddy 3 bar map sensor
K&N air filter
Denso Iridium plugs
Ceramic coated turbo manifold
Ceramic coated turbo downpipe
HKS SSQV II blow off valve
TSD engine oil cooler
Hayden ATF cooler
ASR oil cooler adapter with thermostat
Oil catch tank
Customized 2.25' exhaust pipings
Motul 300V Power 5W40

Transmission
Stock 4-speed automatic
Motul ATF-1A

Brakes
VTTR Racing 4 pot caliper
VTTR Racing 280mm slotted disc rotors
Motul DOT 5.1 brake fluid

Suspension
16' Advan RZ wheels
Yokohama A Drive 205/50/R16 tires

Electronics
GReddy E-Manage blue
Apexi Auto Timer

Performance (Wheels)
150.90 PS @ 6300 rpm
19.26 kg-m @ 4200 rpm

More Sneak Preview

Here are more sneak preview pictures and even a video of the Suzuki Swift Turbo project.

The car hasn't finished tuning yet as the injectors were maxed out at 0.4 bar of boost and is already making over 140 wheels horsepower at the 3rd pull on the dyno.

Stay tuned.






Sneak Preview

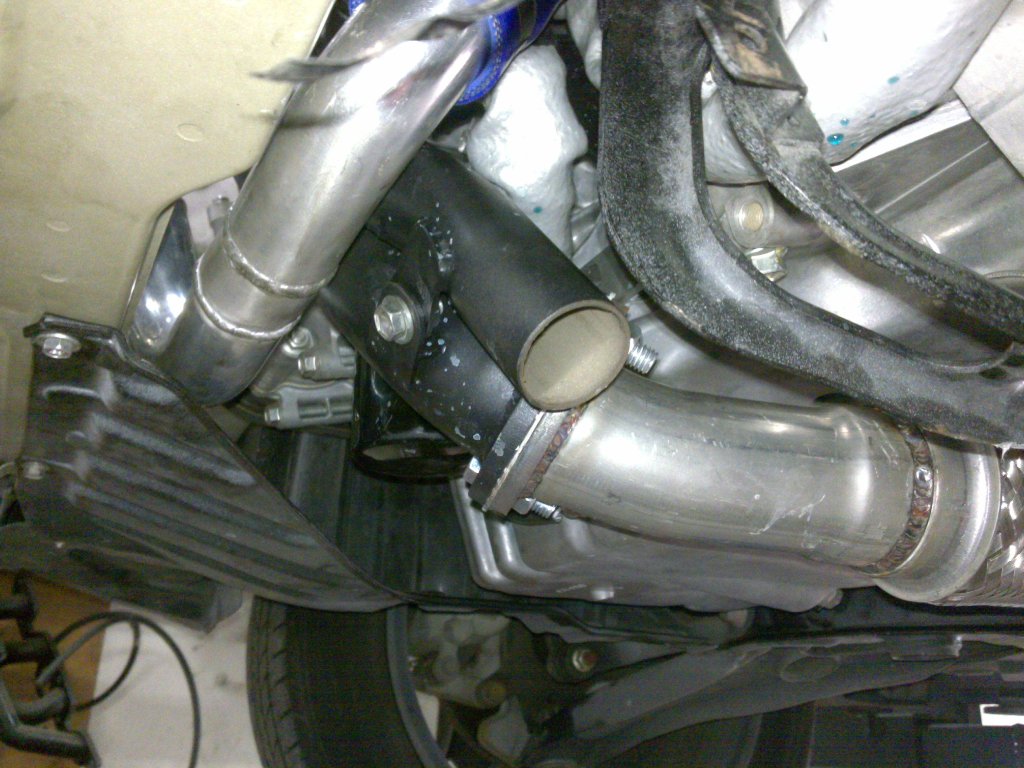

Here are some sneak peak preview pictures of the GT Auto turbo kit being fitted to the car.




Coming Soon

Project Suzuki Swift Turbo by GT Auto is currently in the make, watch out this space for more updates in the future.
